BF GEARS USA

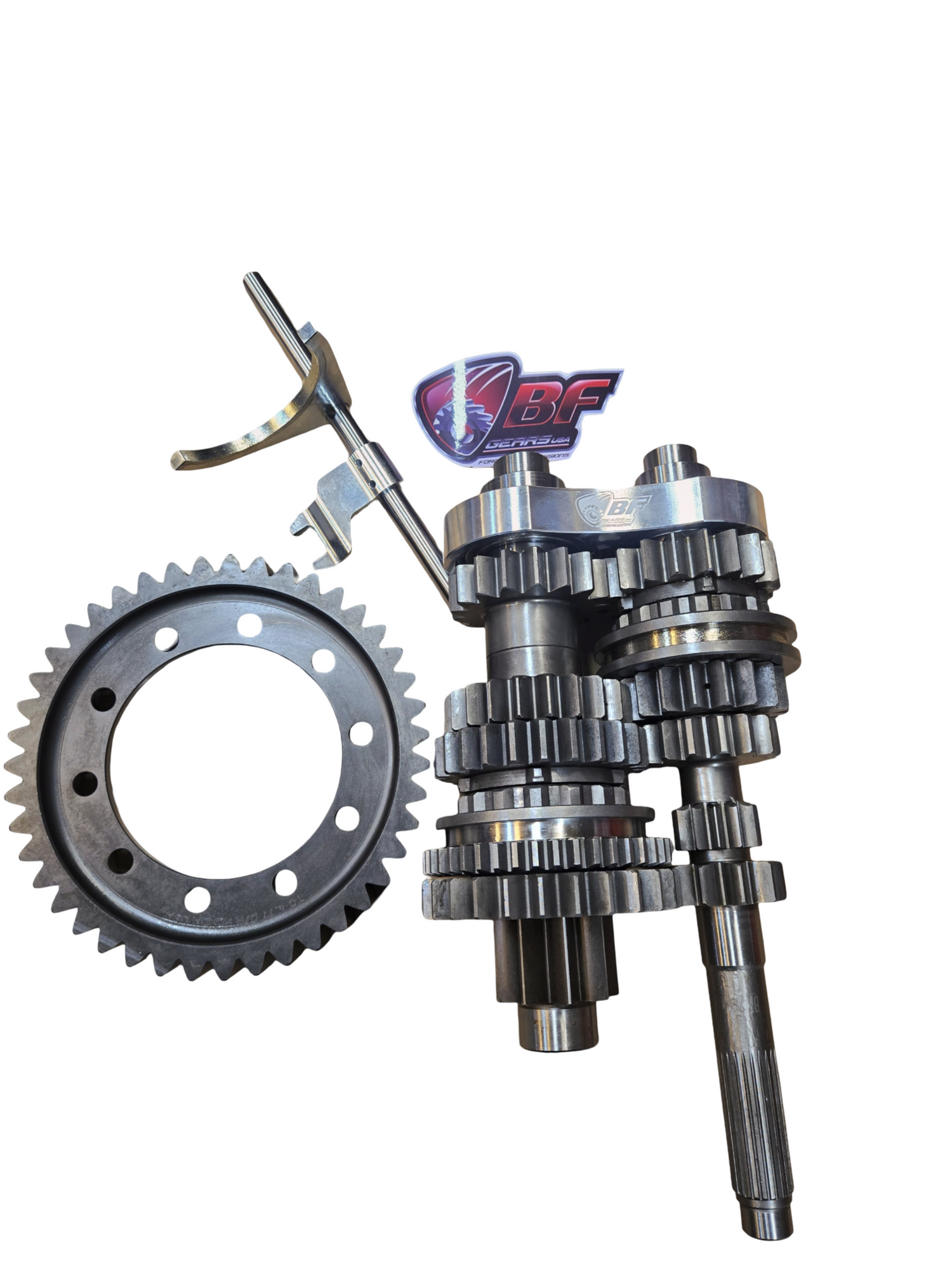

K SERIES TURBO 1-4 HD STRAIGHT CUT, CUFF, FINAL DRIVE AND FORK FULL RACE SET

$5,500.00 USD
$6,375.00 USD $5,500.00 USD
Sale Sold out
Shipping calculated at checkout.
FINAL DRIVE
FWD OR AWD
Replaceable dog rings on all gears.
2.8/1.9/1.29/1.0

Straight cut
Full size input shaft with no step down.

Extra spline length to accommodate triple disc clutches.
5mm bigger gears over stock
Custom Forged 3-4 Fork for new slider location.
Uses stock 1-2 fork
Have to use 6spd 5-6 and reverse fork

5-6 fork will need to be cut off at the slider location as it will hit cuff.

1-4 only. No other gears can be added.

**AS A PRE CAUTION, MUST PUT A SPOT WELD ON THE ROLL PIN ONCE YOU CHOOSE IF USING FOR STOCK LOCATION OR HD LOCATION.. ** IF FAIL TO DO SO, ROLL PIN CAN VIBRATE LOOSE OVER TIME AND CAUSE SERIOUS DAMAGE TO GEARSET!!

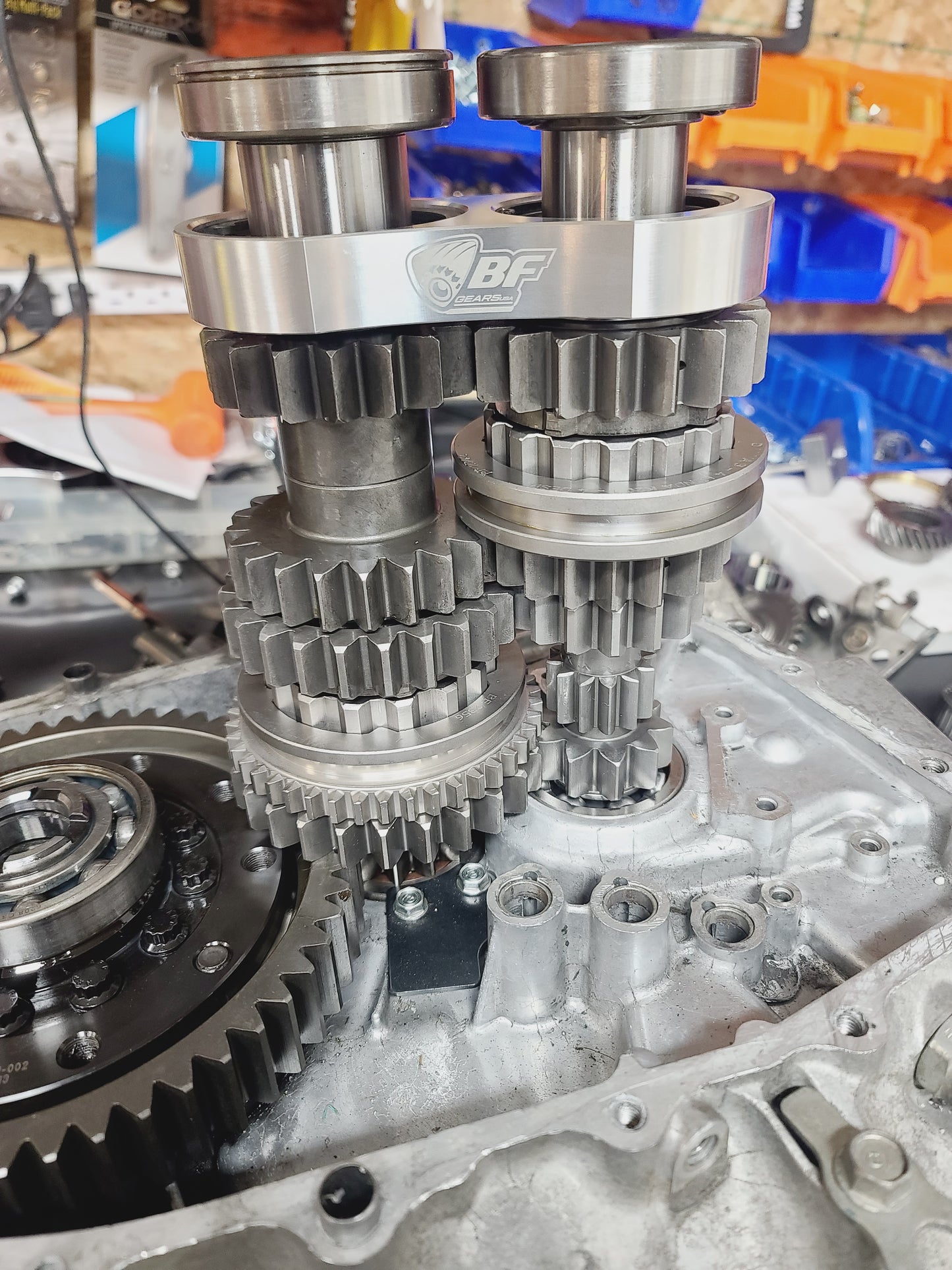

We require assembly to be checked in a window case. That is a "cut top half case on 4 sides to see thru window, to make sure all lines up and engages fully and smoothly. Simulates a locked in top bearing and fully functioning gear set."

Saves hassle and risk of doing damage putting it in the car blind.

Hp rating 1400

Professional install required
